"HidroGrup Package Type
Biological Domestic Waste Water
Treatment Units have been developed
for the aim of treatment of domestic
waste water. All those units are
developed and manufactured entirely
by the experience and Research&Development
Study of HidroGrup. As the
treatment technology for domestic
waste water developes the method of
“Sequencing Batch Reactor Process”
is currently widely-spread in use.
Since this method realizes the
aeration and sedimentation processes
within the same reactor, it has a
considerable advantage compared with
the other methods.
"HidroGrup Package Type
Biological Domestic Waste Water
Treatment Units" are operated fully
automatic under the command of Smart
Relay (Compact PLC). These units are
manufactured of St 37 steel plates
and they have a specifically formed
compact cylindrical structure.
“HidroGrup Package Type
Biological Domestic Waste Water
Treatment Units” keep all the
equipment inside of the unit. All
those equipment (blowers, transfer
pumps, dosage pumps and diffusors)
are the products of world famous and
well-known companies.
Technical Features of Package
Type Biological Domestic Wastewater
Treatment Units:
◊ A product of experience and
RESEARCH & DEVELOPMENT study,
◊ A compact specifically formed
cylindrical structure,
◊ Manufactured of 4-5 mm. thick St37
steel plates,
◊ Completely manufactured and
finished in the factory of HidroGrup
Inc. ,
◊ “SEQUENCING BATCH REACTOR” , the
modern process technology ,
◊ Industrial paint for external
surfaces , Epoxy paint for internal
surfaces,
◊ The most appropriate solution for
the domestical waste water treatment
of holiday villages , hotels ,
touristical facilities ,
cooperatives ,sites of summer houses
and sea-side resort areas ,factories
, hospitals , schools , working-sites
,small – residential regions.
· 25-800 persons capacity,
· Fully automatic,
· High efficiency,
· Minimum maintenance,
· Quiet and odourless,

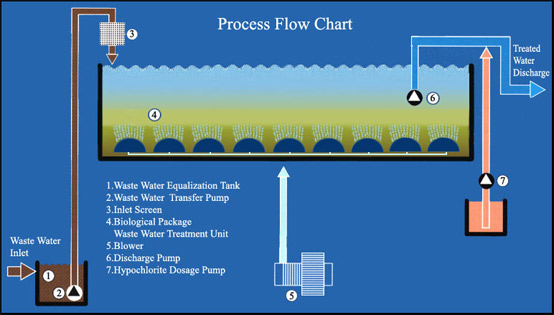

DESCRIPTION OF THE PROCESS
The operation principle (working-principle)
of this biological treatment unit is
“sequencing batch reactor” system
which is the advanced technology for
treatment of domestic waste water.
The unit is fed by means of a waste
water transfer pump.
The waste water collected within the
waste water equalization tank is
seperated from the solid
contaminants such as solid waste,
clothes and etc. by means of a
basket type fine-meshed grating
located at the inlet section of the
system. This operation is realized
with the help of a submersible type
waste water pump. After the grating,
the waste water is transferred to
the sequencing batch reactor and
then the waste water is reacted with
the activated-sludge. Within the
sequencing batch reactor, the
organic contaminants in the waste
water is converted to CO2 and water
by the help of aerobic bacterias. In
order to achieve this reaction, the
necessary oxygen and mixture-air is
provided by the blower included
within the unit.
The air produced by the blower is
distributed into the tank equally
through the use of rubber membrane
diffusors providing the fine-meshed
air bubbles. The organic
contamination within the waste water
is removed in the sequencing batch
reactor and then the waste water is
left to sedimentation process with
the bacteria flocks.
The treated water seperated from the
bacteria flocks by means of
sedimentation process is discharged
through the use of submersible type
discharge pump, during the discharge
operation the treated water is
disinfected by dosing hypochlorite
with the help of dosage pump.
The waste sludge formed within the
system by the time passes must be
taken away from the plant through
the use of mobile vehicles e.g.
night cart.
The system is operated automatically.
If the treated water is to be used
for irrigation (agricultural
watering), it can be accumulated
within an additional treated water
storage tank. The treated water can
be transferred to irrigation by
means of a package type hydrophore.
HIDROPAK BIOLOGICAL
DOMESTIC WASTEWATER
TREATMENT UNITS SELECTION
TABLE
|
TYPE |
E.N. (Person) |
Flow Rate (m3/day) |
Width (mm) |
Length (mm) |
Height (mm) |
Power Rate (kw) |
Empty Weight (kg) |
Full Weight(kg) |
Modul Number |
|
HIDROPAK 25 |
25 |
5 |
Ø 1800 |
|
3000 |
3,1 |
1200 |
8200 |
1 |
|
HIDROPAK 50 |
50 |
10 |
Ø 2300 |
|
3000 |
3,1 |
1500 |
12800 |
1 |
|
HIDROPAK 100 |
100 |
20 |
Ø 2800 |
|
3000 |
3,8 |
2000 |
19000 |
1 |
|
HIDROPAK 150 |
150 |
30 |
Ø 2800 |
4500 |
|
3,8 |
3100 |
26000 |
1 |
|
HIDROPAK 200 |
200 |
40 |
Ø 2800 |
6000 |
|
3,8 |
3300 |
36000 |
1 |
|
HIDROPAK 300 |
300 |
60 |
Ø 2800 |
7500 |
|
5,6 |
3900 |
44000 |
1 |
|
HIDROPAK 400 |
400 |
80 |
Ø 2800 |
9000 |
|
7,1 |
4500 |
54000 |
1 |
|
HIDROPAK 500 |
500 |
100 |
Ø 2800 |
10500 |
|
7,5 |
5100 |
63000 |
1 |
|
HIDROPAK 600 |
600 |
120 |
Ø 2800 |
12000 |
|
7,8 |
5600 |
72000 |
1 |
|
HIDROPAK 700 |
700 |
140 |
Ø 2800 |
13500 |
|
10,9 |
6200 |
82000 |
1 |
|
HIDROPAK 800 |
800 |
160 |
Ø 2800 |
13500 |
|
10,9 |
6200 |
82000 |
1 |
|
HIDROPAK 1000 |
1000 |
200 |
Ø 2800 |
10500 |
|
10,9 |
10200 |
126000 |
2 |
|
HIDROPAK 1200 |
1200 |
240 |
Ø 2800 |
12000 |
|
10,9 |
11200 |
144000 |
2 |
|
HIDROPAK 1400 |
1400 |
280 |
Ø 2800 |
13500 |
|
17 |
12400 |
164000 |
2 |
|
HIDROPAK 1600 |
1600 |
320 |
Ø 2800 |
13500 |
|
17 |
12400 |
164000 |
2 |
|
HIDROPAK 1800 |
1800 |
360 |
Ø 2800 |
12000 |
|
18,7 |
16800 |
216000 |
3 |
|
HIDROPAK 2000 |
2000 |
400 |
Ø 2800 |
10500 |
|
21,8 |
20400 |
252000 |
4 |
HIDROPAK BIOLOGICAL
DOMESTIC WASTEWATER
TREATMENT UNITS REINFORCED
CONCRETE DIMENSIONS
|
TYPE |
E.N. (Person) |
Flow Rate (m3/day) |
Pedestal |
First Collapse Pool |
Wastewater Balance
Pool |
Mud Store Pool |
Height (mm) |
|
Width (cm) |
Length(cm) |
Height(cm) |
Width (cm) |
Length(cm) |
Width(cm) |
Length(cm) |
Width(cm) |
Length(cm) |
| HIDROPAK
25 |
25 |
5 |
200 |
200 |
15 |
120 |
70 |
120 |
100 |
|
|
250 |
| HIDROPAK
50 |
50 |
10 |
250 |
250 |
15 |
120 |
70 |
120 |
180 |
|
|
250 |
| HIDROPAK
100 |
100 |
20 |
300 |
300 |
15 |
150 |
70 |
150 |
250 |
|
|
250 |
| HIDROPAK
150 |
150 |
30 |
360 |
500 |
20 |
200 |
70 |
200 |
250 |
|
|
250 |
| HIDROPAK
200 |
200 |
40 |
360 |
650 |
20 |
250 |
70 |
250 |
300 |
|
|
250 |
| HIDROPAK
300 |
300 |
60 |
360 |
800 |
20 |
250 |
80 |
250 |
300 |
|
|
300 |
| HIDROPAK
400 |
400 |
80 |
360 |
950 |
20 |
300 |
80 |
300 |
340 |
300 |
80 |
300 |
| HIDROPAK
500 |
500 |
100 |
360 |
1100 |
20 |
300 |
80 |
300 |
420 |
300 |
80 |
300 |
| HIDROPAK
600 |
600 |
120 |
360 |
1250 |
20 |
350 |
80 |
350 |
430 |
350 |
80 |
300 |
| HIDROPAK
700 |
700 |
140 |
360 |
1400 |
20 |
400 |
80 |
400 |
440 |
400 |
80 |
300 |
|
HIDROPAK 800 |
800 |
160 |
360 |
1400 |
20 |
400 |
80 |
400 |
500 |
400 |
80 |
300 |
|
HIDROPAK 1000 |
1000 |
200 |
680 |
950 |
20 |
400 |
80 |
400 |
625 |
400 |
80 |
300 |
|
HIDROPAK 1200 |
1200 |
240 |
680 |
1100 |
20 |
450 |
80 |
450 |
670 |
450 |
80 |
300 |
|
HIDROPAK 1400 |
1400 |
280 |
680 |
1250 |
20 |
500 |
80 |
500 |
700 |
500 |
80 |
300 |
|
HIDROPAK 1600 |
1600 |
320 |
680 |
1400 |
20 |
500 |
80 |
500 |
800 |
500 |
80 |
300 |
|
HIDROPAK 1800 |
1800 |
360 |
1000 |
1400 |
20 |
500 |
80 |
500 |
900 |
500 |
80 |
300 |
|
HIDROPAK 2000 |
2000 |
400 |
1360 |
1400 |
20 |
550 |
80 |
550 |
900 |
550 |
80 |
300 |
